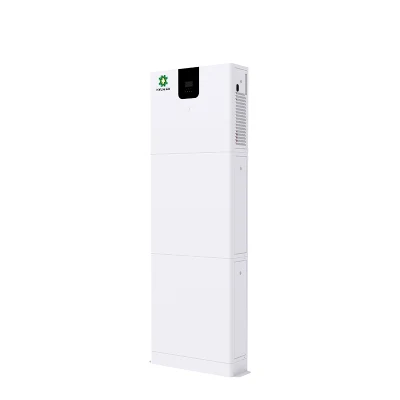

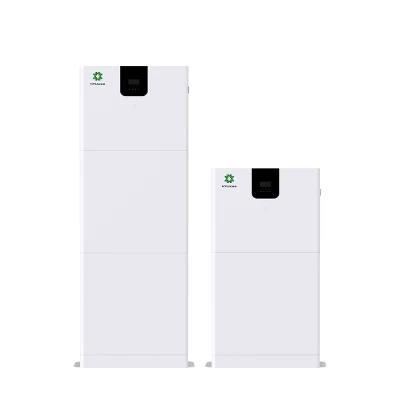

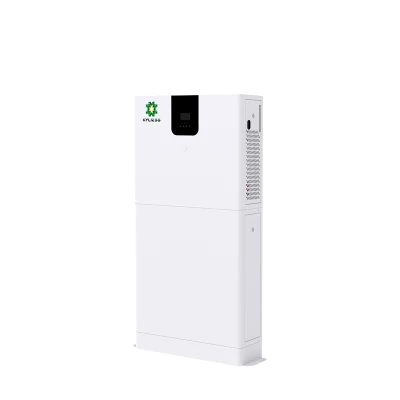

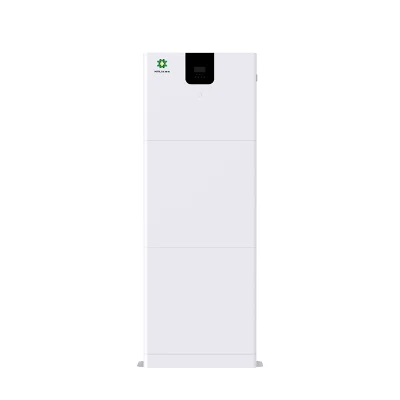

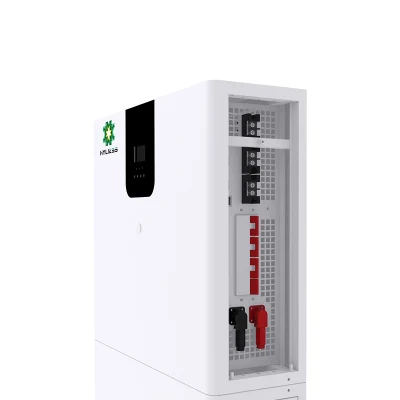

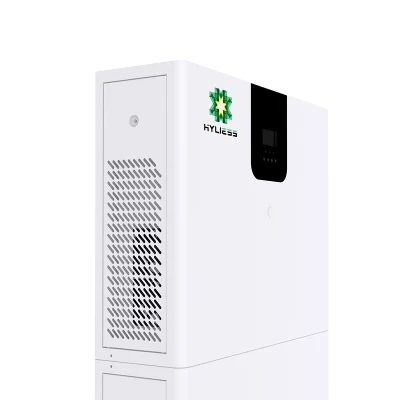

Hyliess 5kw Hybrid Solar Energy Storage System for Solar Battery Rechargeable Battery Energy Storage System

Hyliess 5kw Hybrid Solar Energy Storage System for Solar Battery Rechargeable Battery Energy Storage System. We are a factory specializing in renewable energy solutions.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SolBox 505-520
Trademark
Hyliess
Origin
Hunan, China
HS Code
8504402000
Production Capacity
5000pieces/Month

Product Description

Product Specifications:

Model
SolBox510 SolBox520
Rated power
5000W
5000W
Battery Technical Specification
Number Of Batteries  2 4
Battery Energy 10.24kWh  20.48kWh
Battery Capacity 200Ah  400Ah
Weight 130kg 250kg
Dimension L× D× H 1800x600x184mm 1800x600x184mm 1300x600x184mm
Battery Type LiFePO4
Battery Rated Voltage 51.2V
Battery Working Voltage Range 44.8 ~ 57.6V
Maximum Charging Current 100A
Maximum Discharging Current 100A
DOD 80%
Parallel Quantity 4
Life Cycle  6000
AC Charge
Voltage
220/230Vac
voltage Range
90-280Vac
Frequency
  50 HZ
PV  Charge
Solar Charge Type
MPPT
Maximum Output Power 5000W
PV Charging Current Range
0~80A
PV Operating Voltage Range

120~500V
MPPT Voltage Range
120~450V
AC Output
Rated Output Power

5000W
Maximum Output Current 30A
Overload Current 35A
Battery Inverter Output
Rated Output Power 5000W
Maximum Peak Power 10KVA
Power Factor 1
Rated Output Voltage (Vac) 230Vac
Frequency 50Hz
Auto Switch Period <15ms
THD <3%
General Data
Communication
RS485/CAN/WiFi
Storage Time / Temperature
6 months @25ºC;3 months @35ºC;1 months @45ºC
Charging Temperature Range
0~45ºC
Discharging Temperature Range
-10~45ºC
Operation Humidity 5% ~ 85%
Nominal Operation Altitude <2000m
Cooling Mode force-air cooling
Noise 60dB(A)
Ingress Protection Rating IP20
Recommended Operation Environment indoor
Installation Method
vertical
Certification UN38.3,MSDS,EN55032,EN55024,EN61000-3-2,EN61000-3-3

Hyliess 5kw Hybrid Solar Energy Storage System for Solar Battery Rechargeable Battery Energy Storage System Hyliess 5kw Hybrid Solar Energy Storage System for Solar Battery Rechargeable Battery Energy Storage System Hyliess 5kw Hybrid Solar Energy Storage System for Solar Battery Rechargeable Battery Energy Storage System
Company profile
Hyliess 5kw Hybrid Solar Energy Storage System for Solar Battery Rechargeable Battery Energy Storage SystemHunan Hyliess New Energy Technology is a high-tech enterprise which was established in April 2015 with the registered capital of 4.5 million
USD, located in Changsha China. The company focus on R&D, production and sales of new energy technology. We have the
most advanced R&D and manufacturing equipment in hydrogen and lithium energy storage products. Meanwhile, it has introduced
professional professors from Central South University & Hunan University to participate in technical and become strategic partners.
Our products have covered: residential,commercial & industrial, on/off-grid, micro-grid energy storage and energy management system and other application fields. Hyliess is a global leading enterprise in new energy business, we have two factories of 100000 with perfect supply chain, production line and quality management system.

Certifications
Hyliess 5kw Hybrid Solar Energy Storage System for Solar Battery Rechargeable Battery Energy Storage System Packaging
Hyliess 5kw Hybrid Solar Energy Storage System for Solar Battery Rechargeable Battery Energy Storage System
Shipping

Hyliess 5kw Hybrid Solar Energy Storage System for Solar Battery Rechargeable Battery Energy Storage System
FAQ

Why a Familiy need Hyliess Products ?

1. Self-powered home
Use solar and Hyliess products to reduce reliance on the grid and run your home by solar day and night.

2 .Backup Power
Protect your home from a power outage with seamless and reliable backup power.

3.Energy saving
Reduce your electricity bill, if your utility offers a time-of-use rate plan.

4.Home energy control
Manage and control your home energy use our mobile App
