5kw 10kw 15kw 20kw 30kw Hybrid on/off Grid Solar PV Inverter Panels Photovoltaic Home Energy Storage Power Generator Module System Kit with Lithium-Ion Battery

Get reliable and efficient solar energy solutions with our 5kw-30kw Hybrid Solar PV Inverter Panels. Our factory offers top-quality home energy storage systems with lithium-ion batteries for on/off grid use.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • How it works?
  • Company Profile
  • Certifications
  • Worldwide Projects
  • Global Exhibitions
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Technical Support
Solar System Installation Video
Serve Life
25 Years
Safety Class
Class a
Output Frequency
50/60Hz
Mounting Type
Ground Mounting, Roof Mounting, Carport Mounting
Work Time (H)
24 Hours
Solar Panel (W)
450W-700W
Battery Type
Lead-Acid, Lithium Ion
Output Voltage (V)
AC 220/110V
Load Power (W)
3kw, 5kw, 10kw,20kw,30kw
Transport Package
Standard Export Carton with Foam Inside
Trademark
Inlux
Origin
Jiangsu China
HS Code
8504409940
Production Capacity
50000 Piece/Pieces Per Month

Product Description

5kw 10kw 15kw 20kw 30kw Hybrid on/off Grid Solar PV Inverter Panels Photovoltaic Home Energy Storage Power Generator Module System Kit with Lithium-Ion Battery
Components
3KM-5kWh Off-Grid BESS
3KM-10kWh Off-Grid BESS
5KM-10kWh Off-Grid BESS 5KM-20kWh Off-Grid BESS 10KM-20kWh Off-Grid BESS 10KM-30kWh Off-Grid BESS 20KM-40kWh Off-Grid BESS 30KM-60kWh Off-Grid BESS
560W Solar Panel
4 Pieces
4 Pieces
9 Pieces
9 Pieces
18 Pieces
18 Pieces
36 Pieces
54 Pieces
PV Combiner Box
2 in 1 out
2 in 1 out
1 in 1 out
1 in 1 out
2 in 2 out
2 in 2 out
4*(1 in 1 out)
6*(1 in 1 out)
    Hybrid Inverter
3kw
3kw
5kw
5kw
10kw
10kw
4*5kw
6*5kw
LFP 5.12KWH  Battery
1 Piece
2 Pieces
2 Pieces
4 Pieces
4 Pieces
6 Pieces
8 Pieces
12 Pieces
Connector
MC4
MC4
MC4
MC4
MC4
MC4
MC4
MC4
Panel Bracket
Hot-dip Zinc
Hot-dip Zinc
Hot-dip Zinc
Hot-dip Zinc
Hot-dip Zinc
Hot-dip Zinc
Hot-dip Zinc
Hot-dip Zinc

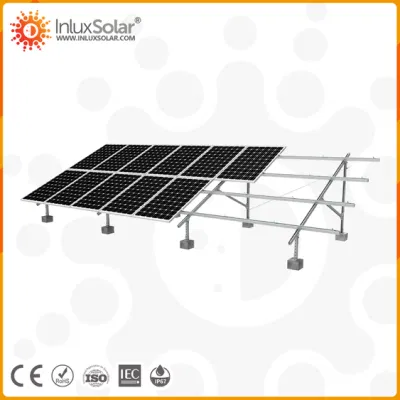

Mounting System

Ground or Roof ( Customized Optional )
 Battery PARAMETERS
Model Num LFP48100-5KWH
Battery Type LiFePO4 (LFP)
Rate Voltage 51.2 Vdc
Voltage Range 44 Vdc - 56.8 Vdc
Rate Capacity 100 Ah
Charge Voltage 56.8 Vdc
Rate Energy 5.12 kWh
Max Cont. Charge 100 A
Max Cont. Discharge 100 A
Peak Current 120 A ≤ 0.3 sec
IP Level IP30
Short Circuit Current 440 A, <500uS
5kw 10kw 15kw 20kw 30kw Hybrid on/off Grid Solar PV Inverter Panels Photovoltaic Home Energy Storage Power Generator Module System Kit with Lithium-Ion Battery
5kw 10kw 15kw 20kw 30kw Hybrid on/off Grid Solar PV Inverter Panels Photovoltaic Home Energy Storage Power Generator Module System Kit with Lithium-Ion Battery
Solar Panels

1:Perc/Bifacial/HJT solar panels are available

2:25 years warranty

3:Highest quality with full certificates

4:Excellent mechanical load resistance

5:PID Resistant, High salt and ammonia resistance

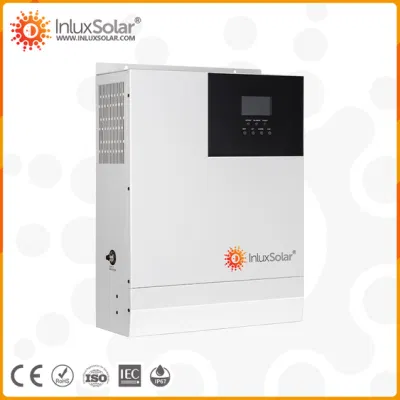

Hybrid Inverter

1:5 years standard warranty

2:Max.Efficiency 99.6%,European efficiency 99%
Integrated DC switch for added safety protection

3:Power factor continuously adjustable

4:Transformer-less design and high power density,
off lighter and more convenient installation

5: Flexible communication connection, support RF WIFI
5kw 10kw 15kw 20kw 30kw Hybrid on/off Grid Solar PV Inverter Panels Photovoltaic Home Energy Storage Power Generator Module System Kit with Lithium-Ion Battery
5kw 10kw 15kw 20kw 30kw Hybrid on/off Grid Solar PV Inverter Panels Photovoltaic Home Energy Storage Power Generator Module System Kit with Lithium-Ion Battery

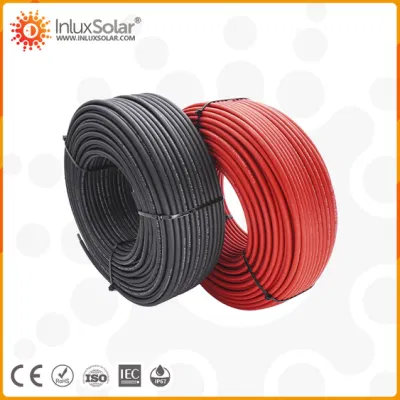

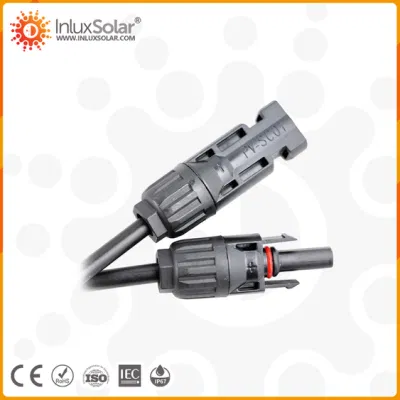

SOLAR SYSTEM ACCESSORIES

1. Pin Diameter:4mm
2. Degree of Proteetion:IP67
3. Max System Voltage:1000V
4. Rated Current:30A(4m3/6m3)
5. Excellent resistance to U.V,oil, greases, oxygen and ozone
6. Excellent flexibility and stripping
7. High Voltage and Current carring capacity
8. IP 65 Degree Lightning Protection

How it works?

5kw 10kw 15kw 20kw 30kw Hybrid on/off Grid Solar PV Inverter Panels Photovoltaic Home Energy Storage Power Generator Module System Kit with Lithium-Ion Battery

Company Profile

5kw 10kw 15kw 20kw 30kw Hybrid on/off Grid Solar PV Inverter Panels Photovoltaic Home Energy Storage Power Generator Module System Kit with Lithium-Ion Battery

5kw 10kw 15kw 20kw 30kw Hybrid on/off Grid Solar PV Inverter Panels Photovoltaic Home Energy Storage Power Generator Module System Kit with Lithium-Ion Battery

Certifications

5kw 10kw 15kw 20kw 30kw Hybrid on/off Grid Solar PV Inverter Panels Photovoltaic Home Energy Storage Power Generator Module System Kit with Lithium-Ion Battery

Worldwide Projects

5kw 10kw 15kw 20kw 30kw Hybrid on/off Grid Solar PV Inverter Panels Photovoltaic Home Energy Storage Power Generator Module System Kit with Lithium-Ion Battery

Global Exhibitions

5kw 10kw 15kw 20kw 30kw Hybrid on/off Grid Solar PV Inverter Panels Photovoltaic Home Energy Storage Power Generator Module System Kit with Lithium-Ion Battery

Packaging & Shipping

5kw 10kw 15kw 20kw 30kw Hybrid on/off Grid Solar PV Inverter Panels Photovoltaic Home Energy Storage Power Generator Module System Kit with Lithium-Ion Battery

FAQ



Q:How do I choose the right solar system?
A:We provide a 24-hour online guidance service to customize a solar system for you according to your electricity needs.

Q:How to pick out certified solar accessories?
A:It is encouraged to pick out gadget add- ons merchandise licensed via nationally permitted certification bodies, and the models, specs, and producers of key factors and uncooked substances need to be regular with the licensed products. In addition, the specifications, models, and technical parameters of all gadget add-ons need to fit the plan of the whole system.

Q:What is the protection of photovoltaic strength generation, how to deal with lightning strikes, hail, leakage, and different problems?
A:First of all, DC combiner boxes, inverters, and different gear strains have overload safety functions. When atypical voltages such as lightning strikes and leakage occur, they will routinely become off and disconnected, so there is no protection problem.Secondly, the floor of photovoltaic modules is made of superb impact-resistant tempered glass, which has passed through rigorous trying out and checking out when passing the EU certification and can stand up to wind stress of 200Pa and snow stress of 7200Pa.

Q:How do I ship the product to my home?
A:First of all, after our engineers have custom-made the machine appropriate for you, We will ship the goods to the destination port by sea. We will aid in the complete process, entire the transportation and customs declaration, and have no issues about customs clearance and clean receipt of goods. Africa, Asia furnish door-to-door carriers or nearby pickup services.

Q:Will it be hard to installation if I deploy it myself?
A:We grant experts to set up drawings and person manuals, TANFON hands-on setup technique videos, and the manufacturing unit has a very whole setup gear for on-site set up demonstrations. Any nearby electrician can without difficulty installation the TANFON device 100%.

Q:Do you have auto transfer switch between grid and solar system?
A:YES!
At daytime solar will be charged then during outages solar system will support to,when battery not enough ,will use grid or generator automatically .

Q:What is your maintenance rule?
A:With lifelong maintenance and Professional customized design,solar systems reduce financial expenses and energy autonomy.
