PRODUCTS DETAILS

  • Overview
  • Product Description
  • Main Products
Overview

Basic Info.

Model NO.
LM-SL18
Power
20-250W
Application
Square, Highway, Garden, Parking Lot
IP Rating
IP66
Certification
CE, EMC, LVD, RoHS, SAA
Input Voltage
85-265V
With Light Source
Customization
LED Chips Brand
CREE
Warranty(Year)
5-Year
Beam Angle(°)
150*75
Lifespan (Hours)
50000
Dimming
Support
SPD
10kv. 20kv
Color Rendering Index(Ra)
70
Working Temperature(ºC)
-30-65
Transport Package
1PC/CTN with Styrofoam Protect.
Specification
6.8kg
Trademark
LOMLUX
Origin
Zhejinag, China
HS Code
9405990000
Production Capacity
150000 Pieces Per Month

Packaging & Delivery

Package Size
57.00cm * 24.50cm * 15.00cm
Package Gross Weight
4.200kg

Product Description

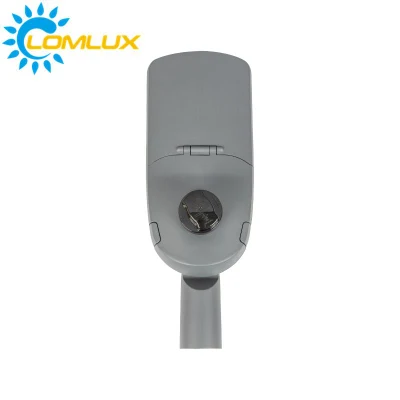

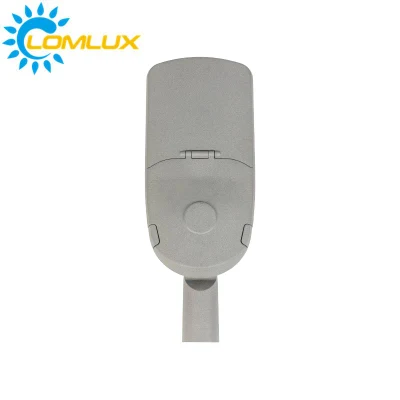

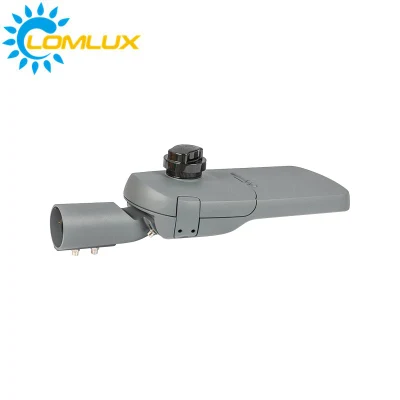

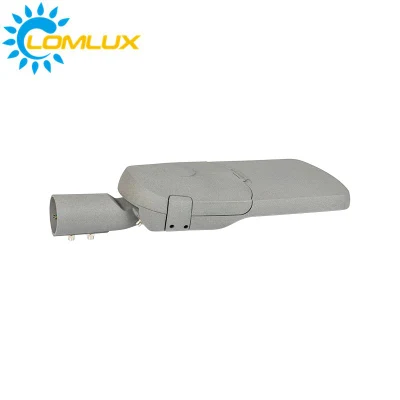

LOMLUX LED STREET LIGHT LM-SL18 China Manufacturer

Product Description

OEM High Quality Efficient Energy-Saving Street Light IP66 Waterproof Outerdoor Lamp 20-200W Light Cn Factory Supplier Manufacturer LED Street LightMAIN ADVANTAGES OF THE LED LUMINAIRE LM-SL18
LED street light have a long useful life and low running costs. They are valued for their above-average durability,
high resistance to mechanical damage, environmental friendliness, very good visibility and aesthetic values.

The die-cast aluminum ensures offective heat dissipation, while maintaining high durability of the LED luminaire.
Power-coated body with a self-cleaning coating - standard colour RAL9007 - provides ideal protection against corrosion.
Street Lighting -Lomlux luminaires are available in a wide range of lens to suit different road classes.
High Power Factor >0.94 in full control range.
Protection built-in over voltage protection 10KV 20KV SPD as optional.
Savings the high efficiency LED luminaire (150lm/W) reduces electricity costs by over 50%.
Smart Lighting - 3/5/7Pin NEMA to support Photocell, 1-10V / PMW / DALI Dimming and smart city lighting systems.
Certs - ENEC+, ENEC, CB, SAA, CE, EMC, RoHS, IP66, IK09, LM79, TM21 etc.
5-7 Years warranty on the luminaire and a post warranty service.



Model LM-SL18-Mini LM-SL18-S LM-SL18-M LM-SL18-L
Size 535*200*120mm 620*235*125mm 690*260*130mm 810*320*135mm
Power 20-60W 60-100W 100-150W 150-200W
Luminous Flux 135-155lm/W
Holder 48mm, 60mm, 76mm
Material Aluminum, LED Chip, Lens, Toughened Glass, Screw
LED Chip 3030SMD,5050SMD, CREE
Optic Lens 20, 30, 60, 90, 120, Type I, II, III, IV, V options
Driver Meanwell, Phlips, Sosen, Inventronics or specified brand
CCT 3000K, 4000K, 5000, 5700K, 6500K
IP Level IP66
Certifications ENEC CB SAA CE RoHS EMC IP66 IK09 etc.
Warranty 5-7 years

OEM High Quality Efficient Energy-Saving Street Light IP66 Waterproof Outerdoor Lamp 20-200W Light Cn Factory Supplier Manufacturer LED Street Light

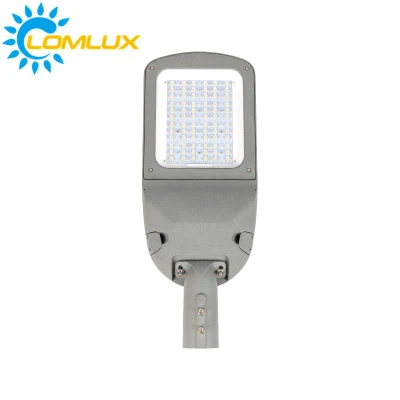

High Efficacy LED Source

Luminous source, providing excellent lumen
output, long-lasting stability and splendid
sight. The efficiency of 5050 chips
is more than 175 lm/w.
High-End LED Driver
High-end Meanwell / Sosen programmable LED driver, 4KV / 6KV surge protection, Optimal Stability, Excellent performance and lifespan.
OEM High Quality Efficient Energy-Saving Street Light IP66 Waterproof Outerdoor Lamp 20-200W Light Cn Factory Supplier Manufacturer LED Street Light

OEM High Quality Efficient Energy-Saving Street Light IP66 Waterproof Outerdoor Lamp 20-200W Light Cn Factory Supplier Manufacturer LED Street Light
Multiple Installation
Lomlux LED Street Light can both support vertical post top mount and horizontal side entry mount. and the installation angle can be adjusted 0-15 degrees
Variety Light Distribution
Lomlux provides different light distribution lens for the street light to achieve best lighting effect in different applications.
Follows the North American IESNA standard in providing the optional lens width ,Type I, Type II ,Type III.
OEM High Quality Efficient Energy-Saving Street Light IP66 Waterproof Outerdoor Lamp 20-200W Light Cn Factory Supplier Manufacturer LED Street Light

OEM High Quality Efficient Energy-Saving Street Light IP66 Waterproof Outerdoor Lamp 20-200W Light Cn Factory Supplier Manufacturer LED Street Light
Surge Protection Device
TUV approved 10KV 20KV surge protection device is the standard configuration in all of our LED Street Light.
Remote Smart Control System
Lomlux provides a total solution for intelligence street lighting system. Communication via GPRS/CDMA/WCDMA wireless network or cable network & monitor center and proceeds with communication via ZIGBEE/PLC/ROLA.
OEM High Quality Efficient Energy-Saving Street Light IP66 Waterproof Outerdoor Lamp 20-200W Light Cn Factory Supplier Manufacturer LED Street Light

Main Products



OEM High Quality Efficient Energy-Saving Street Light IP66 Waterproof Outerdoor Lamp 20-200W Light Cn Factory Supplier Manufacturer LED Street Light
 LM-SL18
OEM High Quality Efficient Energy-Saving Street Light IP66 Waterproof Outerdoor Lamp 20-200W Light Cn Factory Supplier Manufacturer LED Street Light
                                 LM-GSL68
OEM High Quality Efficient Energy-Saving Street Light IP66 Waterproof Outerdoor Lamp 20-200W Light Cn Factory Supplier Manufacturer LED Street Light
     LM-GSL01A
OEM High Quality Efficient Energy-Saving Street Light IP66 Waterproof Outerdoor Lamp 20-200W Light Cn Factory Supplier Manufacturer LED Street Light
LM-FL59
OEM High Quality Efficient Energy-Saving Street Light IP66 Waterproof Outerdoor Lamp 20-200W Light Cn Factory Supplier Manufacturer LED Street Light                               LM-GSL09A OEM High Quality Efficient Energy-Saving Street Light IP66 Waterproof Outerdoor Lamp 20-200W Light Cn Factory Supplier Manufacturer LED Street Light                                    LM-SL27
